Doyono - Digital HV Servo - DHS-70 - Brushless - 70.0kg Torque

Doyono - Digital HV Servo - DHS-70 - Brushless - 70.0kg Torque - 0.12s Speed

Doyono

DO-DHS70

>10 in stock

€ 86,95 € 71,86 excl. VAT

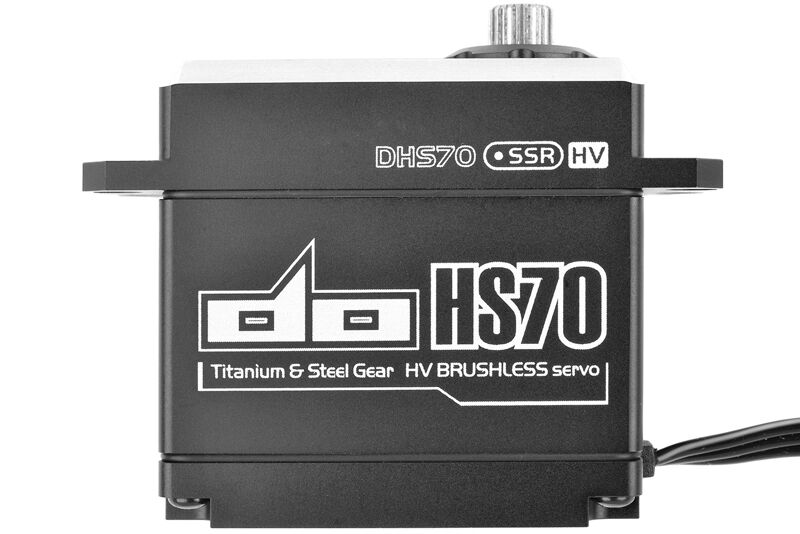

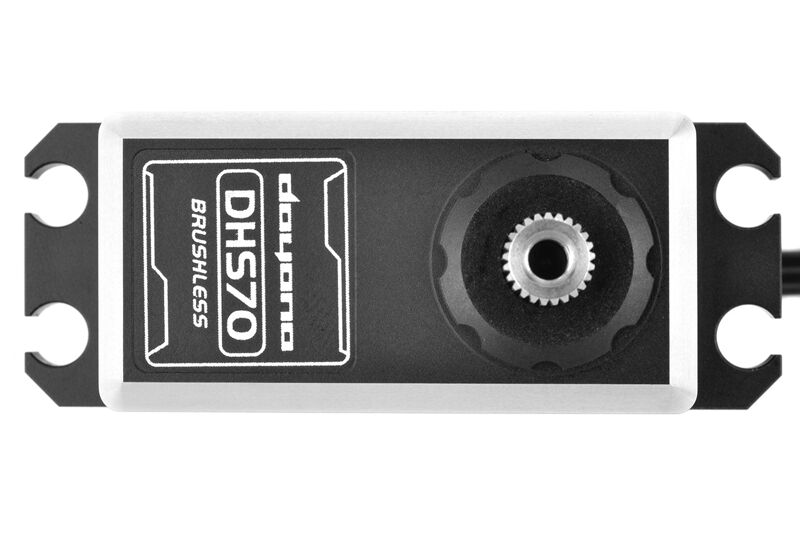

Doyono presents an array of top-notch servos, combining superior quality with an affordable price tag. This commanding high-voltage servo, capable of delivering up to 70kgcm of torque, is driven by a brushless motor. It features a gear assembly crafted from robust titanium and steel, all housed within a lightweight aluminum casing. As a result, it guarantees optimal performance, contributing to an elevated driving experience.

Key Features:
• High Voltage Servo
• Gears constructed from durable titanium and steel
• Lightweight aluminum housing
• Operating Voltage: 6.0-8.4V
• Precise 2µs dead band, centered at 1520µs
• 180mm connection wire length for flexible installations

General Info

Item Nr: DO-DHS70

Barcode: 6959009007012

Brand: Doyono

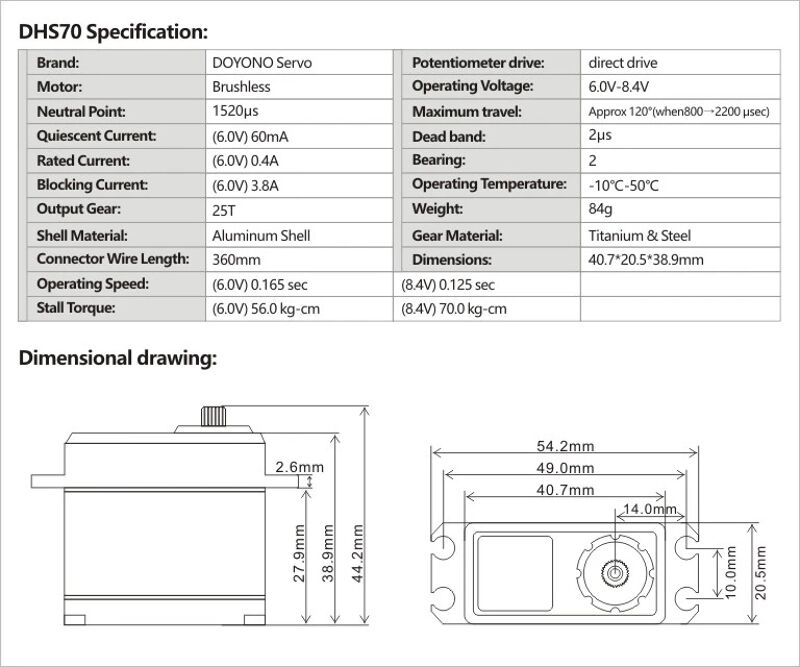

Servo - Dimensions

Servo Type: Standard Servo

Spline Type: 25T Spline

Length (mm): 40,7

Width (mm): 20,5

Height (mm): 38,9

Weight (g): 84

Servo - Specs

Speed 60°/Sec @ 6.0V: 0,17

Speed 60°/Sec @ 8.4V: 0,13

Torque kg/cm @ 6.0V: 56

Torque kg/cm @ 8.4V: 70

Quiescent Current (mA): 60

Rated Current (mA): 400

Blocking Current (mA): 3800

Servo - Technology

Technology: Digital HV

Operating Voltage (V): 6.0V - 8.4V

Servo Motor: Brushless Motor

Servo Protection: Water - Dust Resistant

Servo Positioning: VR Potentiometer - Direct Drive

Servo Gears: Titanium & Steel Gears

Servo Case: Aluminium Case

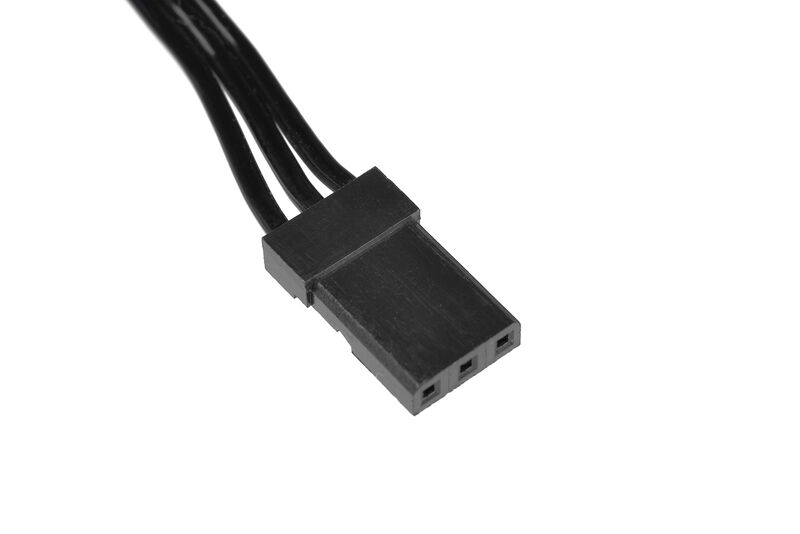

Connector: JR Universal + Black Lead
